Ball Lock Type Stainless Steel Cable Ties

Self Locking Ball Type Stainless Steel Cable Ties provides a strong, durable bundling and fastening. Low weight, High strength of roller ball are designed for use in application where strength, vibration, weathering, corrosion extremes are a factor. It is more efficient and reliable than conventional fasteners. Quick and easy installation.

Available in Grade 304 & 316 Coated or Un-coated, in 4.6 mm and 7.9 mm widths and various lengths.

Minimum Loop Tensile Strength:

4.6 mm width Un-coated - 130 lbs 4.6 mm width Coated - 110 lbs
7.9 mm width Un-coated - 270 lbs 7.9 mm width Coated - 200 lbs

Technical Data:

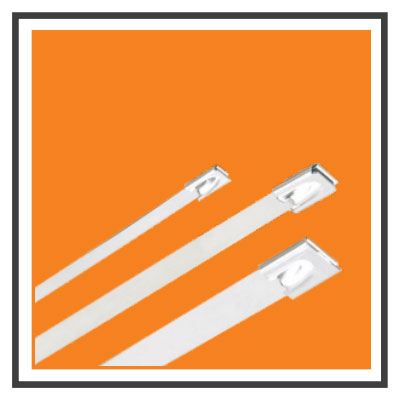

Type: Roller Ball Un-coated
Width: 4.6 mm and 7.9 mm
Material: SS 304 & SS 316

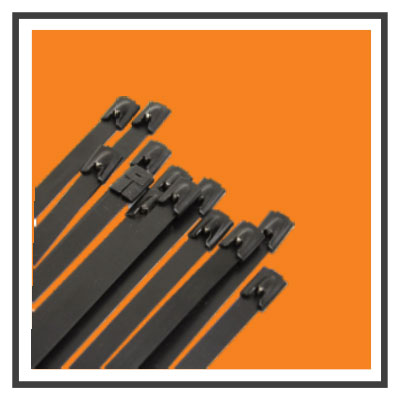

Type: Roller Ball Coated
Width: 4.6 mm and 7.9 mm
Material: SS 304 & SS 316

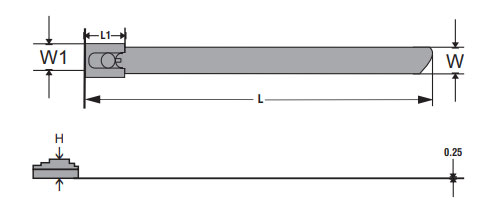

PRODUCT CODE WIDTH
(in mm)		 LENGTH
(in mm)		 MAXIMUM BUNDLE DIA
(in mm)
46ARBU-316-100 4.6 100 20
46ARBU-316-125 4.6 125 30
46ARBU-316-150 4.6 150 35
46ARBU-316-200 4.6 200 50
46ARBU-316-250 4.6 250 70
46ARBU-316-300 4.6 300 85
46ARBU-316-360 4.6 360 100
46ARBU-316-450 4.6 450 130
46ARBU-316-520 4.6 520 155
46ARBU-316-680 4.6 680 200
46ARBU-316-840 4.6 810 255
46ARBU-316-1000 4.6 1000 305
79ARBU-316-100 7.9 100 20
79ARBU-316-125 7.9 125 30
79ARBU-316-150 7.9 150 35
79ARBU-316-200 7.9 200 50
79ARBU-316-250 7.9 250 70
79ARBU-316-300 7.9 300 85
79ARBU-316-360 7.9 360 100
79ARBU-316-450 7.9 450 130
79ARBU-316-520 7.9 520 155
79ARBU-316-680 7.9 680 200
79ARBU-316-840 7.9 840 255
79ARBU-316-1000 7.9 1000 305
PRODUCT CODE WIDTH
(in mm)		 LENGTH
(in mm)		 MAXIMUM BUNDLE DIA
(in mm)
46ARBC-316-100 4.6 100 20
46ARBC-316-125 4.6 125 30
46ARBC-316-150 4.6 150 35
46ARBC-316-200 4.6 200 50
46ARBC-316-250 4.6 250 70
46ARBC-316-300 4.6 300 85
46ARBC-316-360 4.6 360 100
46ARBC-316-450 4.6 450 130
46ARBC-316-520 4.6 520 155
46ARBC-316-680 4.6 680 200
46ARBC-316-840 4.6 810 255
46ARBC-316-1000 4.6 1000 305
79ARBC-316-100 7.9 100 20
79ARBC-316-125 7.9 125 30
79ARBC-316-150 7.9 150 35
79ARBC-316-200 7.9 200 50
79ARBC-316-250 7.9 250 70
79ARBC-316-300 7.9 300 85
79ARBC-316-360 7.9 360 100
79ARBC-316-450 7.9 450 130
79ARBC-316-520 7.9 520 155
79ARBC-316-680 7.9 680 200
79ARBC-316-840 7.9 840 255
79ARBC-316-1000 7.9 1000 305



  • - Ball Lock Type Cable Ties are also available in widths of 12 mm and 16 mm with various lengths for special requirements.
  • - Intermediate lengths are available on demand for special requirements.
  • - Mentioned products are also available in material SS 304, use 304 instead of 316 in product Code e.g. 46ARBU-316-100 shall be 46ARBU-304-100.





Product Information Sheet

Stainless Steel Cable Ties

  • - Type – 4.6 mm Ball lock
  • - Grade – Stainless Steel AISI 316 / AISI 304
  • - Series – Fully Polyester Coated

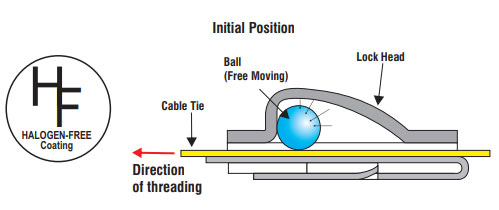

  • - Equipped with unique Ball Locking Mechanism that Allows Simple & rapid installation with secure locking.
  • - Operating range is -80°C to +150°C.



Features & Benefit

  • - High tensile strength.
  • - Resistant to corrosion in most unfavorable ambient.
  • - Weather resistant
  • - Comfortable handling & installation
  • - Eliminate contact corrosion between dissimilar material during application.



Technical Features

  • - High tensile strength.
  • - Resistant to corrosion in most unfavorable ambient.
  • - Weather resistant
  • - Comfortable handling & installation
  • - Eliminate contact corrosion between dissimilar material during application.



ITEM CODE ITEM
DESCRIPTION		 SERIES WIDTH
(in mm)		 GRADE LENGTH
(in mm)		 MAXIMUM BUNDLE
DIA(in mm)		 MIN. LOOP
TENSILE STRENGTH
4.6ARBC316 / 304 -150 Ball Locking Cable Ties Fully Epoxy Polyester coated 4.6 SS 316 / SS 304 150 35 445 N (100 Lbs)
4.6ARBC316 / 304 -200 Ball Locking Cable Ties Fully Epoxy Polyester coated 4.6 SS 316 / SS 304 200 50 445 N (100 Lbs)
4.6ARBC316 / 304 -250 Ball Locking Cable Ties Fully Epoxy Polyester coated 4.6 SS 316 / SS 304 250 70 445 N (100 Lbs)
4.6ARBC316 / 304 -300 Ball Locking Cable Ties Fully Epoxy Polyester coated 4.6 SS 316 / SS 304 300 85 445 N (100 Lbs)
4.6ARBC316 / 304 -360 Ball Locking Cable Ties Fully Epoxy Polyester coated 4.6 SS 316 / SS 304 360 100 445 N (100 Lbs)
4.6ARBC316 / 304 -520 Ball Locking Cable Ties Fully Epoxy Polyester coated 4.6 SS 316 / SS 304 520 155 445 N (100 Lbs)
4.6ARBC316 / 304 -680 Ball Locking Cable Ties Fully Epoxy Polyester coated 4.6 SS 316 / SS 304 680 200 445 N (100 Lbs)

We are committed to produce & supply quality ss cable ties to meet & exceed client need and expectation in the most effective manner.
