Ladder Type Stainless Steel Cable Ties

Ladder Type Stainless Steel Ties are as strong as Ball Lock Type Cable Ties. The Unique Locking design on the strip can be applied without any crimping tool. The Ladder Type Ties are designed for self locking fast and easy application.

Available in Grade 304 & 316 Coated or Un-coated, in 7 mm and 12 mm widths and various lengths.

Normal operating range for un-coated ties version is -80 C to +538 C and fully coated ties is -80 C to +150 C. It is available in wide choice of colors. Coated ties are recommended for added resistance to corrosion, chemical and weathering effects.

Minimum Loop Tensile Strength:
7 mm width - 100 lbs
12 mm width - 200 lbs

Technical Data:

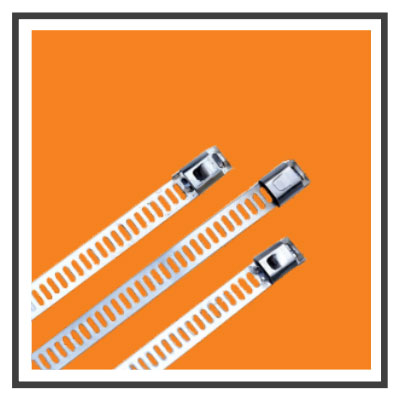

Type: Ladder Type Un-coated
Width: 7 mm and 12 mm
Material: SS 304 & SS 316

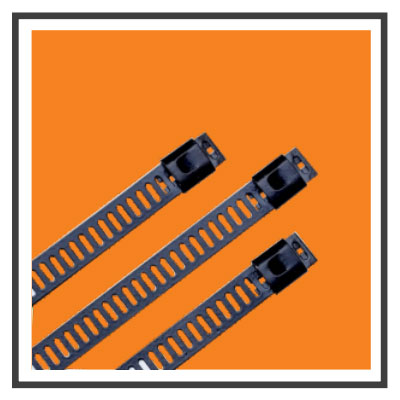

Type: : Ladder Type Coated
Width: 4.6 mm and 7.9 mm
Material: SS 304 & SS 316



PRODUCT CODE WIDTH
(in mm)		 LENGTH
(in mm)		 MAXIMUM BUNDLE DIA
(in mm)
7ALTU-316-100 7 100 20
7ALTU-316-150 7 150 35
7ALTU-316-200 7 200 50
7ALTU-316-250 7 250 70
7ALTU-316-300 7 300 85
7ALTU-316-360 7 360 100
7ALTU-316-450 7 450 130
7ALTU-316-550 7 550 165
7ALTU-316-610 7 610 180
7ALTU-316-680 7 680 200
7ALTU-316-840 7 840 255
7ALTU-316-900 7 900 275
7ALTU-316-1000 7 1000 305
7ALTU-316-1200 7 1200 370
12ALTU-316-100 12 100 20
12ALTU-316-150 12 150 35
12ALTU-316-200 12 200 50
12ALTU-316-250 12 250 70
12ALTU-316-300 12 300 85
12ALTU-316-360 12 360 100
12ALTU-316-450 12 450 130
12ALTU-316-550 12 550 165
12ALTU-316-610 12 610 180
12ALTU-316-680 12 680 200
12ALTU-316-840 12 840 255
12ALTU-316-900 12 900 275
12ALTU-316-1000 12 1000 305
12ALTU-316-1200 12 1200 370
PRODUCT CODE WIDTH
(in mm)		 LENGTH
(in mm)		 MAXIMUM BUNDLE DIA
(in mm)
7ALTC-316-100 7 100 20
7ALTC-316-150 7 150 35
7ALTC-316-200 7 200 50
7ALTC-316-250 7 250 70
7ALTC-316-300 7 300 85
7ALTC-316-360 7 360 100
7ALTC-316-450 7 450 130
7ALTC-316-550 7 550 165
7ALTC-316-610 7 610 180
7ALTC-316-680 7 680 200
7ALTC-316-840 7 840 255
7ALTC-316-900 7 900 275
7ALTC-316-1000 7 1000 305
7ALTC-316-1200 7 1200 370
12ALTC-316-100 12 100 20
12ALTC-316-150 12 150 35
12ALTC-316-200 12 200 50
12ALTC-316-250 12 250 70
12ALTC-316-300 12 300 85
12ALTC-316-360 12 360 100
12ALTC-316-450 12 450 130
12ALTC-316-550 12 550 165
12ALTC-316-610 12 610 180
12ALTC-316-680 12 680 200
12ALTC-316-840 12 840 255
12ALTC-316-900 12 900 275
12ALTC-316-1000 12 1000 305
12ALTC-316-1200 12 1200 370



  • - Ball Lock Type Cable Ties are also available in widths of 12 mm and 16 mm with various lengths for special requirements.
  • - Intermediate lengths are available on demand for special requirements.
  • - Mentioned products are also available in material SS 304, use 304 instead of 316 in product Code e.g. 46ARBU - 316-100 shall be 46ARBU-304-100.
