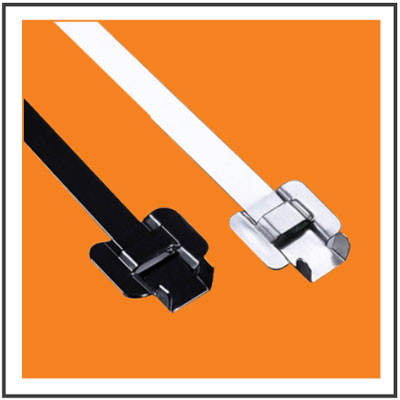

Releasable Type Stainless Steel Cable Ties



Stainless Steel Bands

Stainless Steel 201 is generally used for this application. Bands with widths of 6.35mm, 9.53mm, 12.7mm, 15.88mm & 19.01mm and thickness of 0.38mm with various lengths are available.


Type: Releasable Coated & Un-coated
Width: 6.3 mm and 9.5 mm
Material: SS 304 & SS 316

Minimum Loop Tensile Strength:
6.3 mm width Coated & Un-coated - 400 lbs
9.5 mm width Coated & Un-coated - 500 lbs



Technical Data:

PRODUCT CODE WIDTH
(in mm)		 LENGTH
(in mm)		 MAXIMUM BUNDLE DIA
(in mm)
6.3 ARLU-316-100 6.3 100 35
6.3 ARLU-316-230 6.3 230 60
6.3 ARLU-316-250 6.3 250 75
6.3 ARLU-316-300 6.3 300 85
6.3 ARLU-316-330 6.3 330 95
6.3 ARLU-316-400 6.3 400 115
6.3 ARLU-316-450 6.3 450 130
6.3 ARLU-316-520 6.3 520 155
6.3 ARLU-316-630 6.3 630 190
6.3 ARLU-316-760 6.3 760 230
6.3 ARLU-316-800 6.3 800 240
6.3 ARLU-316-850 6.3 850 260
6.3 ARLU-316-1000 6.3 1000 300
9.5 ARLU-316-100 9.5 100 35
9.5 ARLU-316-230 9.5 230 60
9.5 ARLU-316-250 9.5 250 75
9.5 ARLU-316-300 9.5 300 85
9.5 ARLU-316-330 9.5 330 95
9.5 ARLU-316-400 9.5 400 115
9.5 ARLU-316-450 9.5 450 130
9.5 ARLU-316-520 9.5 520 155
9.5 ARLU-316-630 9.5 630 190
9.5 ARLU-316-760 9.5 760 230
9.5 ARLU-316-800 9.5 800 240
9.5 ARLU-316-850 9.5 850 260
9.5 ARLU-316-1000 9.5 1000 300
PRODUCT CODE WIDTH
(in mm)		 LENGTH
(in mm)		 MAXIMUM BUNDLE DIA
(in mm)
6.3ARLC-316-100 6.3 100 20
6.3ARLC-316-125 6.3 125 30
6.3ARLC-316-150 6.3 150 35
6.3ARLC-316-200 6.3 200 50
6.3ARLC-316-250 6.3 250 70
6.3ARLC-316-300 6.3 300 85
6.3ARLC-316-360 6.3 360 100
6.3ARLC-316-450 6.3 450 130
6.3ARLC-316-520 6.3 520 155
6.3ARLC-316-680 6.3 680 200
6.3ARLC-316-840 6.3 840 255
6.3ARLC-316-1000 6.3 1000 305

9.5 ARLC-316-100 9.5 100 35
9.5 ARLC-316-230 9.5 230 60
9.5 ARLC-316-250 9.5 250 75
9.5 ARLC-316-300 9.5 300 85
9.5 ARLC-316-330 9.5 330 95
9.5 ARLC-316-400 9.5 400 115
9.5 ARLC-316-450 9.5 450 130
9.5 ARLC-316-520 9.5 520 155
9.5 ARLC-316-630 9.5 630 190
9.5 ARLC-316-760 9.5 760 230
9.5 ARLC-316-800 9.5 800 240
9.5 ARLC-316-850 9.5 850 260
9.5 ARLC-316-1000 9.5 1000 300



  • - Intermediate lengths are available on demand for special requirements
  • - Mentioned products are also available in material SS 304, use 304 instead of 316 in product Code e.g. 6.3ARLU-316-150 shall be 6.3ARLU-304-150.
